FineArc-60

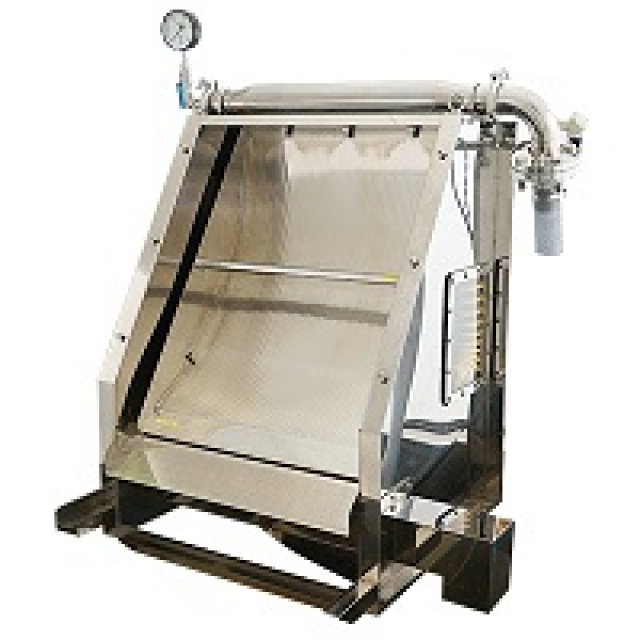

FineArc-60
FineArc is a fine aperture screen that adopts Fine WedgeR as a solid-liquid separation screen with even finer apertures (less than 0.1 mm) than our conventional ULTRA TN SCREEN. It can be used for recovery of sludge and concentration of slurry.
* The appearance, specifications etc. are subject to change without notice due to product improvements and updates.

Features

FineArc-60

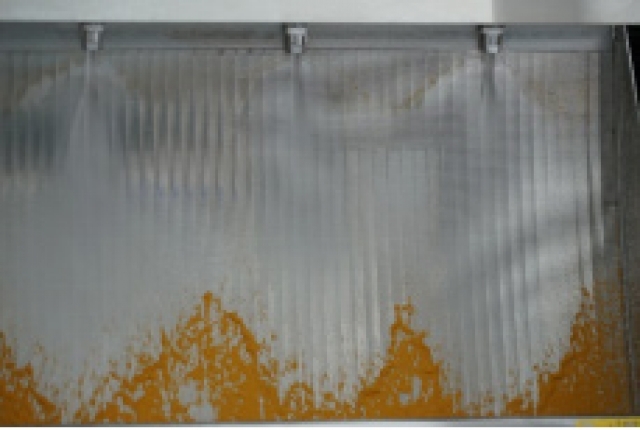

By injecting pressure liquid almost uniformly against the surface of Fine WedgeR, it is possible to perform solid-liquid separation with fine apertures.

Contents / ModelsCL200RN1CL200RN1-FWCL600RN1CL600RN-FW
Screen Wide200200600600
Case Wide500575750900
Case Depth800800800800
Case Height1300130013001300
Inlet Size32A JIS10KLRF32A JIS10KLRF50A JIS10KLRF50A JIS10KLRF
Outlet Size50A JIS10KFF50A JIS10KFF200A JIS10KFF200A JIS10KFF
Recovery Outlet253W x 130D253W x 130D653W x 130D653W x 130D
OptionNoneDriven Flush PipeNoneDriven Flush Pipe
Motor (kW)-0.1-0.1
Weight (kg)90120170200

Slit (Slot)

20μm to 100μm

Main Applications

・ Pretreatment for various microfiltration devices
・ Resin powder / insulation coating / fine powder recovery from chemical plants
・ Sludge in coolant liquid / whetstone recovery
・ Reduction of load of wastewater by sludge concentration
・ Recovery of algae
・ Secondary recovery for ULTRA TN SCREEN, etc.
・ Pulp, labels, fine fiber recovery
・ Sewage river discharge at various plants

Track Record of Performance

ApplicationSlit / Slot (μm)Supply Pressure (MPa)ModelThroughput (m3/h)Option
Removal of feathers, etc. from washing drainage of incubator200.2~0.36005.3
Recovery of water‐bloom from pond200.2~0.3600 x 220
Removal of resin powder in production line300.062002Fixed Flush Pipe
SS removal in cotton coating solution drainage300.152004
Removal of solid matter such as paper powder in ultra-high pressure washing circulating water300.17~0.18200 x 315
Recovery and concentration of solids from highly concentrated drinking water500.246005.6Driven Flush Pipe
Recovery of pickling drainage500.2~0.360011.2
