ULTRA TN SCREEN
ULTRA TN SCREEN
This product is an inclined solid/liquid separating screen with a sales track record of more than thirty thousand units as of today as remover of SS(suspended solids) in treating waste water.
It is useful for the purposes of separation, concentration and recovery in relation to production as well as wastewater treatment.

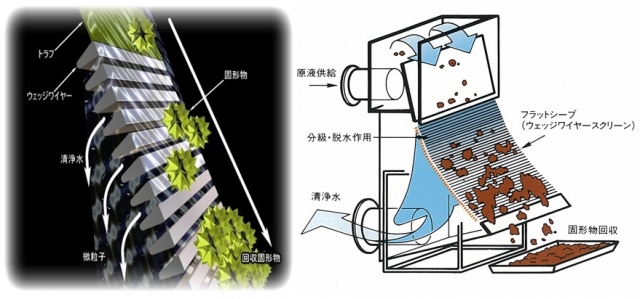

THE PRINCIPLE OF A FLAT SIEVE

ULTRA TN SCREEN

This equipment is a fixed solid/liquid separating unit which collects on the screen foreign particles that are about half the slit width or larger from slurry by the‘Half-Cutting Principle’.
Its features are reduced clogging because of V-shaped slits and the flat screen surface which together allow the collected particles to slide down the screen smoothly and be dewatered effectively. Efficient solid/liquid separation is made possible with it.

Specification (Unit: mm)

Item \ Type N300N600N900N1200N1500N1800
Screen Width300600900120015001800
Screen Length750750750900900900
Casing Width5108101110143017302030
Casing Depth970970970105010501050
Casing Height160016001600180018001800
Inlet Flange Dia.50A65A80A100A125A150A
Outlet Flange Dia.100A125A150A200A250A300A
Inlet Pipe Height109011051110132013351350
Outlet Pipe Height235245260285310335
Weight (kg)100130160200240280
Applied Pump UnitP-1 (One Nozzle)P-1 (One Nozzle)P-1 (One Nozzle)P-1 (Two Nozzles)P-1 (Two Nozzles)P-1 (Two Nozzles)

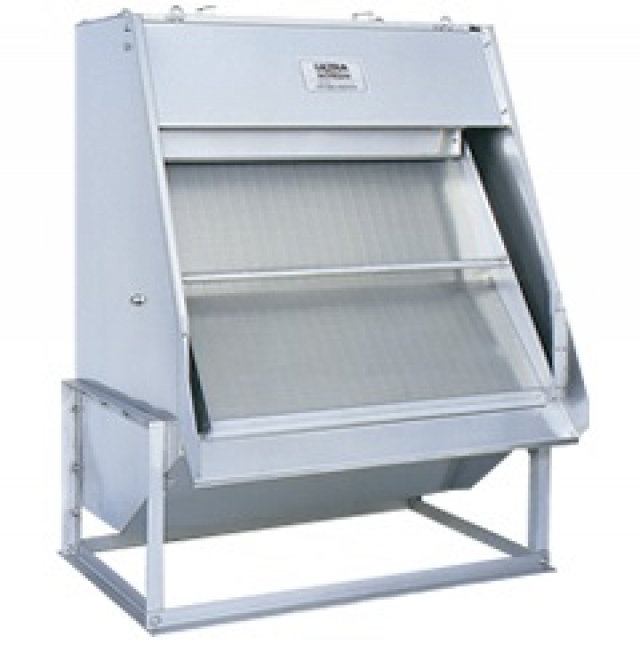

ULTRA TN SCREEN N-TYPE (STANDARD TYPE)

ULTRA TN SCREEN

Lot production is adopted by simplifying its structure. As a result, low price and short delivery are made possible.
Automatic high-pressure water cleaning equipment can be mounted as option. Larger sizes can be made (up to N-3000 Type).

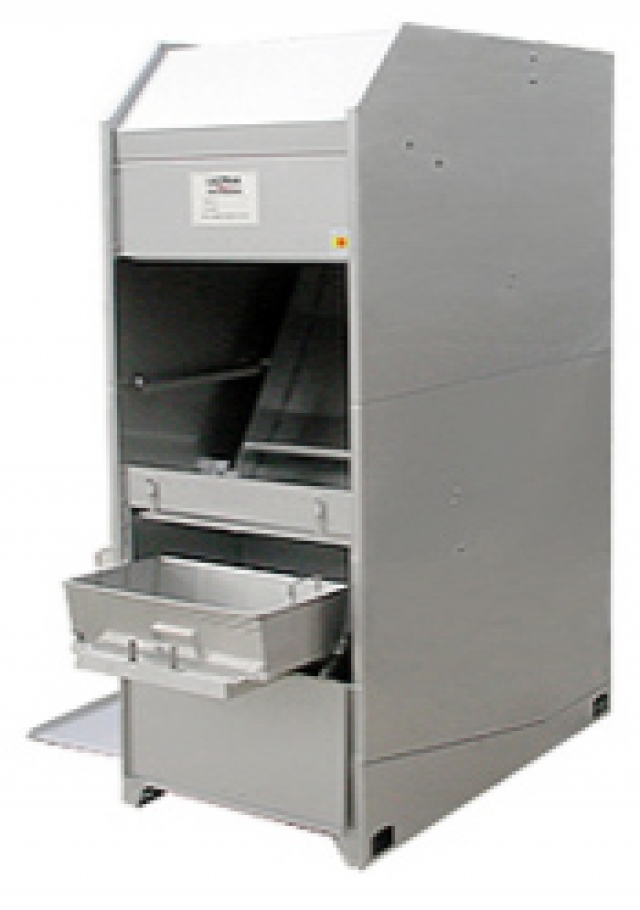

ULTRA TN SCREEN CL-TYPE (CLOSED TYPE)

ULTRA TN SCREEN

Odours and water splashes are shut in.
With a built-in scum basket, collected solids are not exposed. Automatic high-pressure water cleaning equipment can be mounted as option.

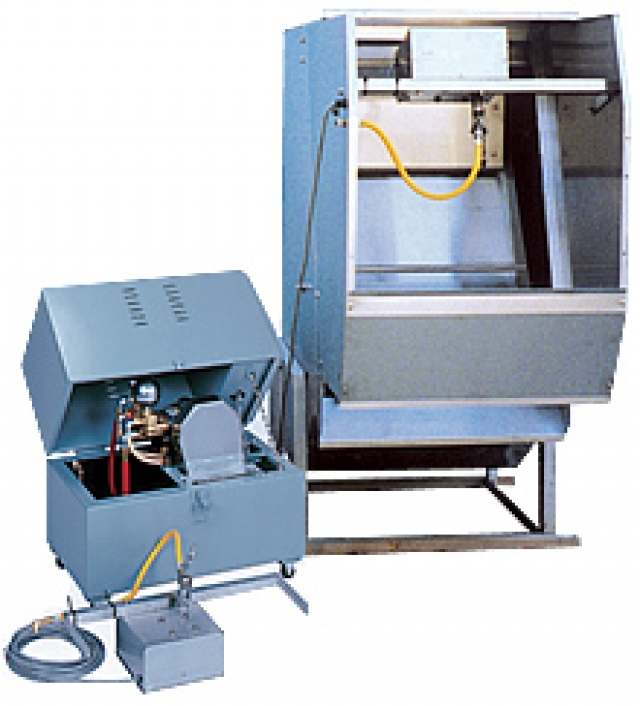

AUTOMATIC HIGH-PRESSURE WATER CLEANING EQUIPMENT

ULTRA TN SCREEN

Problems such as sticking by collected solids on the screen panel and clogging are solved.
It can be mounted on the front side, the rear side or both the sides of the unit.

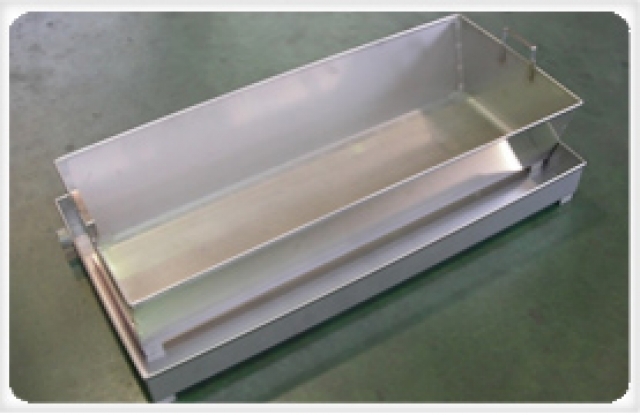

SCUM BASKET & PAN

ULTRA TN SCREEN

These are the scum basket & pan which collects separated solids.

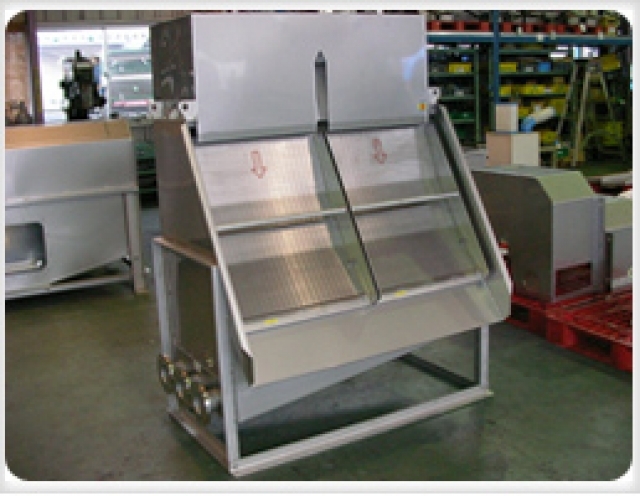

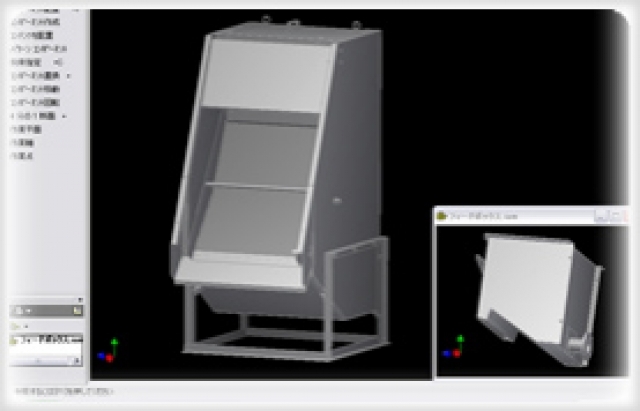

CUSTOMIZED CONSTRUCTIONS OF ULTRA TN SCREEN (EXAMPLES)

ULTRA TN SCREEN

Constructions of Ultra TN screens as exemplified below, on top of N-Type and CL-Type, are available.
Constructions can be customized to meet customers' requirements, making the most of Toyo Screen Kogyo's long accumulated experience and expertise depending on the application conditions at wastewater treatment plants and factories, and on functions intended and applications.

MAIN APPLICATIONS

  • ・Wastewater treatment at chemical plants for textiles, dyeing, leather products, etc.
    ・Wastewater treatment, classification, dewatering and recovery at processing plants for agricultural and marine products.
    ・Treatment of public utility sewage, community sewage and wastewater from multistory buildings.
    ・Sewage treatment at agricultural and stock farms.
    ・Treatment of muddy water at various construction sites.

    A testing machine is available on request for rental. Please inquire of us.
